Variable Size & Narrow Web

JanusTech supplies high quality and cost effective capital equipment solutions to enable today’s web printers to face the challenges of tomorrow. We will source equipment, refurbish, install, commission and fully project manage the entire process from beginning to end.

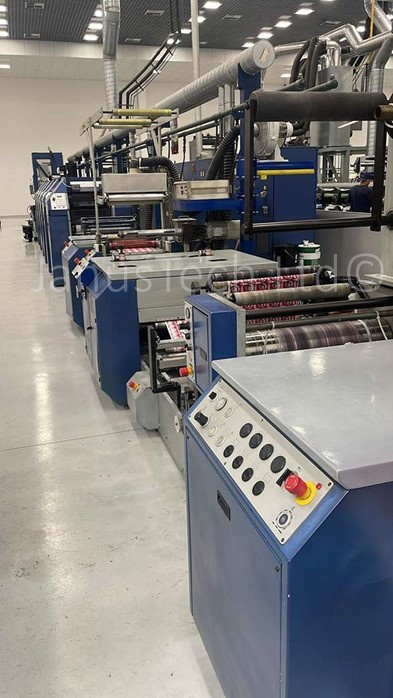

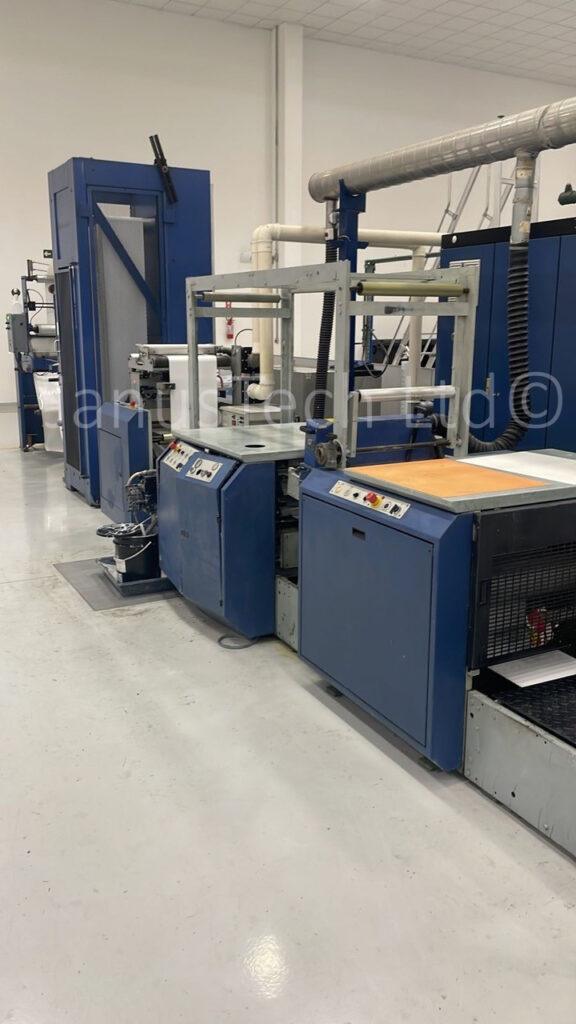

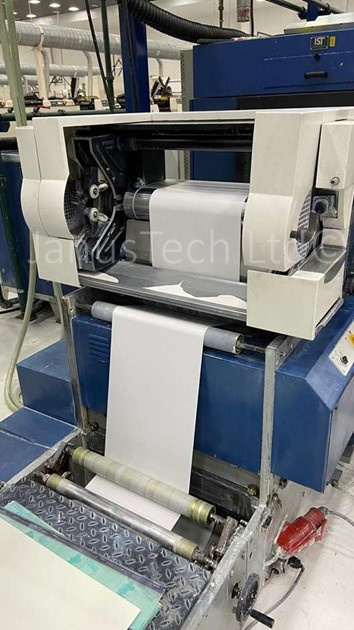

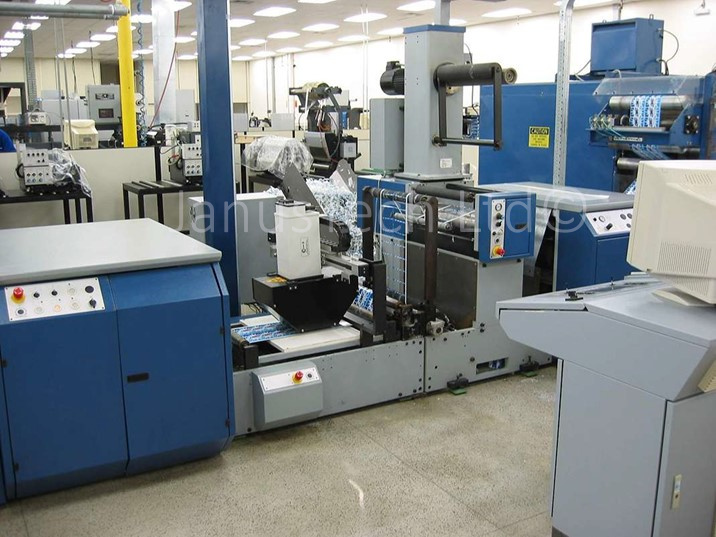

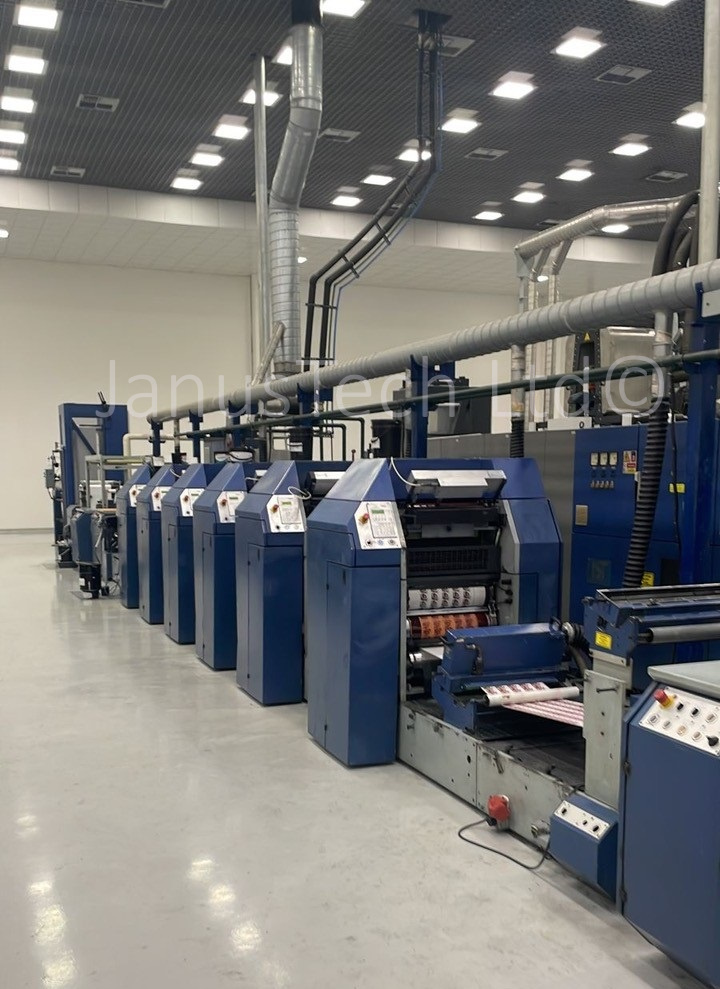

Drent Vision Offset Hybrid Label Press – Sold

Reference:80926

Age:1998

Web Width:520 mm

Max Speed:250 m/ min

Available:Immediately

Call JanusTech today on +44 (0) 1565 723 538

Or fill in the enquiry form

Enquire Here

Videos

Comprising of:

  • Martin automatic unwind splicer
  • Web tension module with web guide
  • Dust suction device
  • Frame with corona unit
  • Multipurpose frame with drive and support for 2 UV lamp suitable for flexo unit
  • Multipurpose frame without drive and support for 1 UV lamp suitable for screen printing unit

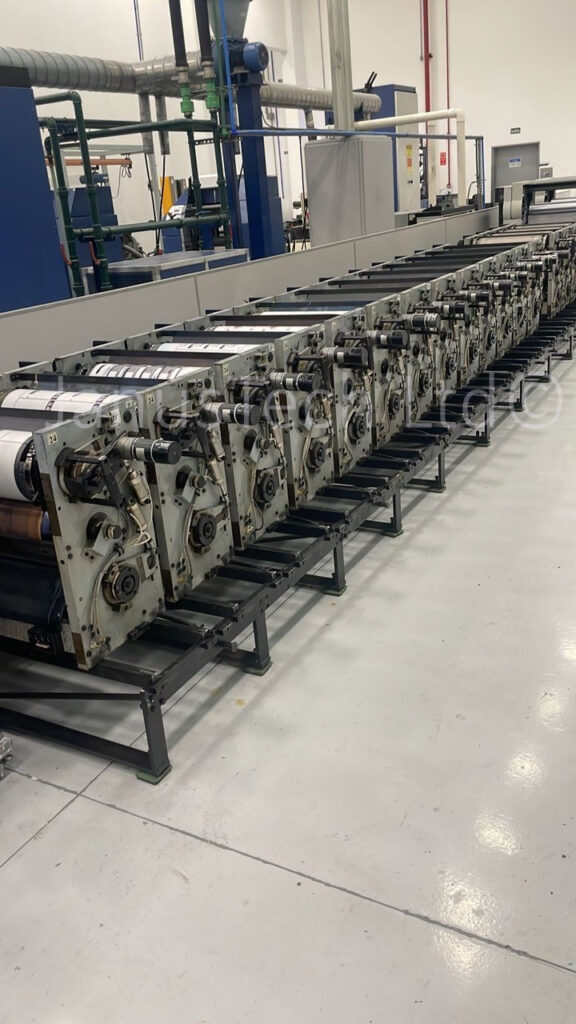

  • 6 x wet offset unit with several supports single and double for UV lamps
  • Multipurpose frame without drive and support for 1 UV lamp suitable for screen printing unit

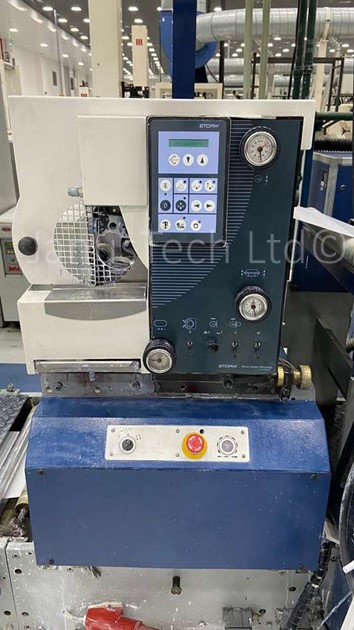

  • 2 x Stork screen printing insert 20” SRI, up to 25”, 1 operational and 1 that needs repair
  • 6 x wet offset cartridge 23”
  • 6 x wet offset cartridge 24”
  • 6 x wet offset cartridge 25”
  • Remote ink duct control system Microcolor 1
  • 6 x Ink mist hood
  • 6 x Ink agitator
  • 7 lamp UV system IST water-cooled, with 9 possible positions to mount
  • Technotrans dampening circulation system
  • Technotrans temperature control system for the oscillation rollers of the offset printing units
  • Multipurpose base with flexo insert for varnishing with flow section
  • 3 x sleeve for full varnishing, 23”, 24” and 25”
  • Lamination unwind for UV lamination in combination with the flexo unit
  • Multipurpose frame with 2 servo drives
  • 1 x Die cutting unit to cut from the top
  • 1 x Die cutting unit to cut from the bottom
  • 1 x spare die cutting unit
  • 4 x magnetic cylinder, 23”, 24”, 25” and 27”
  • Frame with matrix scraper system to remove the waste continuously
  • Web video system, Eltromat Webvideo 2001 to check the print and cut
  • Outfeed module for web tension control and edge trimming
  • Martin automatic rewind

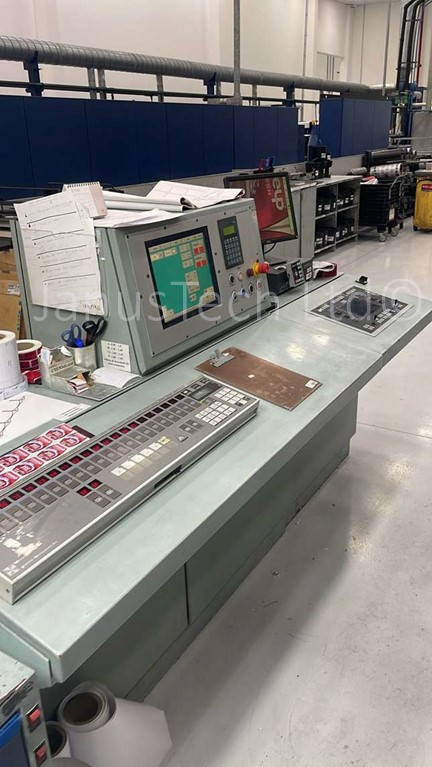

  • Main control panel
  • Main electrical cabinet
  • Trolley for changing cartridges
  • Storage racks for cartridges
  • Storage racks for multipurpose frame inserts
