KMEC CS Label Cutter

KMEC CS Label Cutter with low production hours.

Sheet length:                         50 to 200 mm

Cutting register accuracy:    ±0.15 mm

Shafted pick up unwind (max reel diameter 1 m)

Trim off included

OVERVIEW

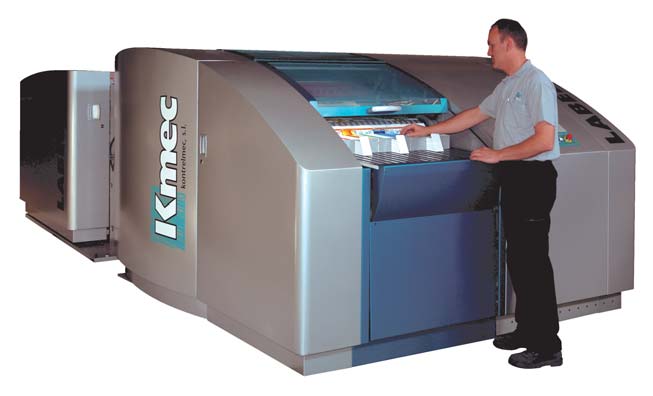

The LABEL CS converts plain or pre-printed reels into label formats. The equipment is modular in design and is made up of an unwinder, an optional embossing unit, followed by a cutting section.  The cutting section has both the cross cutting and slitting stations. The cross cutting design comprises of a multi-blade single rotary knife acting on a fixed bottom knife. The cut labels or strips are conveyed to the delivery by means of a vacuum tape and drum section. The labels or strips are presented in a vertical format or in stacks to an optional automatic delivery complete with card inserters, compression and turning unit, and a final conveyer.

SUITABLE MATERIALS

Papers from 50 up to 120 g/m².

Tobacco complexes from 70 up to 90 g/m². Metallized papers from 50 up to 100 g/m².

PP, BOPP, PE from 45 microns (29 g/m²) up to 90 microns.

Coated HDPE from 75 up to 90 g/m².

SPECIFICATION

DESCRIPTION

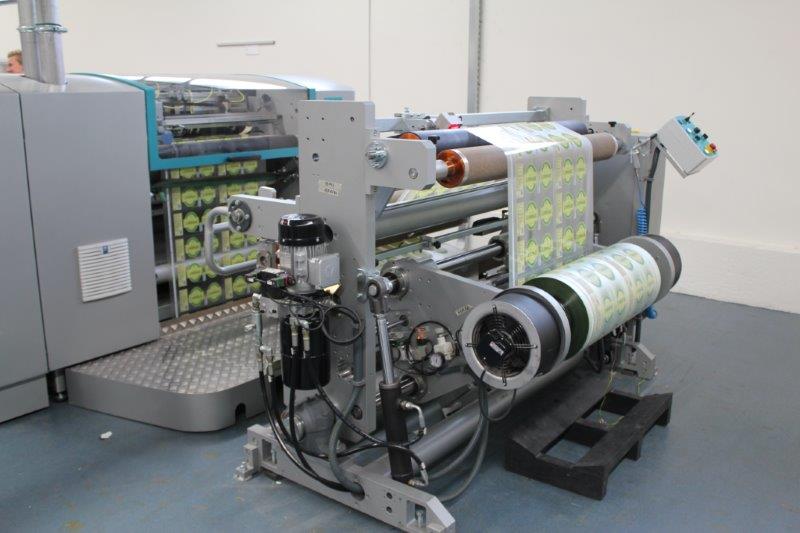

SHAFT LESS FLOOR PICK-UP UNWIND STAND

• Ergonomically designed heavy duty steel fabrication.

• Linear bearings are used for all sliding movements.

• Inboard and outboard movement is electronic controlled.

• The unwind arm is complete with electromagnetic brake.

• The arms are raised and lowered hydraulically for roll loading.

• Features included: auto stop at reel end, and in programmable diameters.

• Automatic web guide for edge or printed line.

CUTTING UNIT

• In feed nip roll driven by an independent A.C. servomotor.

• Top slitting  knife  holders  with  pneumatic  locking  and  setting  (Supply includes 4 sets).

• Edge trim removal with soundproof ventilator.

• The multiple blade rotary knife is complete with AC servomotor drive and controlled by the PLC. Format setting and cut-to-print register is achieved using the operator’s touch screen panel.

• Standard cut accuracy ± 0.15 mm.

• Vacuum tape section to convey the cut labels or strips.

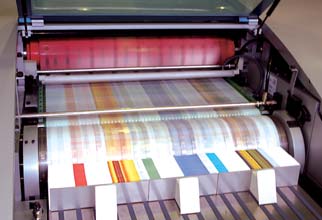

• A rotary drum using vacuum control delivers the labels or strips to the delivery/reception table. The drum is controlled by an independent AC servomotor.

• Anti-static equipment included.

• Operator’s platforms are constructed using aluminum plate.

• Horizontal strips accumulator with automatic exit at predetermined ream/stack count.

• Automatic exit of the reams/stacks to conveyor belt.

ELECTRIC AND ELECTRONIC DEVICES

• Sound-proof integral cabinet containing drives and PLC.

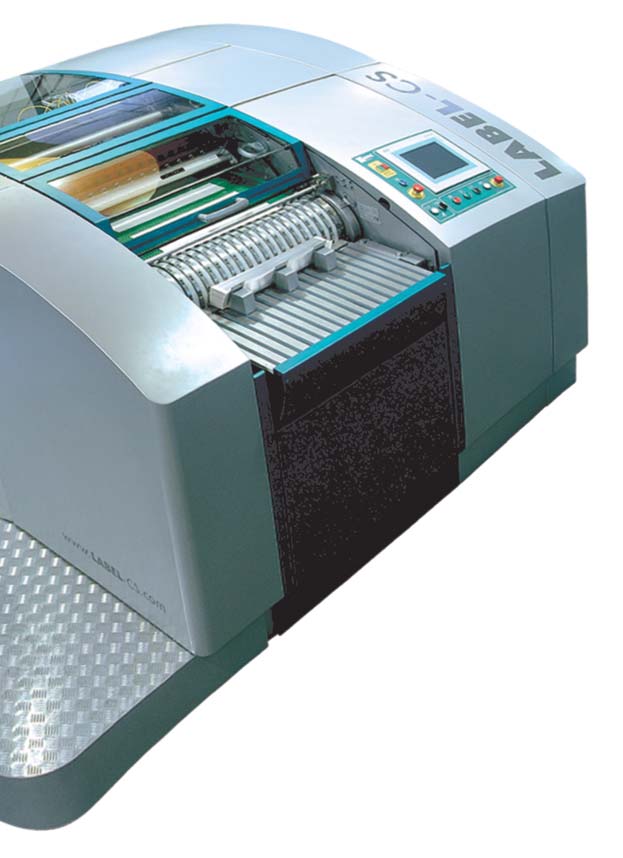

• Strategically positioned  Operator’s  control  console  with  touch  screen panel  view  data  entry,  and  visual  machine  mode  and  set-up  detail display.

• Additional control stations at key operation points.

• Modem for on-line diagnosis.

Note:  Photos and video not of actual machine
