Timson CM 48 2-Colour Book Press

Timson CM 48 2-Colour Book Press

Cut-off (4 around):   244.4” mm
Print Cylinder Circ:   977.9 mm (38.5’’)
Non Print Gap:          12.1 mm (0.475”)
Max Web Width:      1230 mm (48.4”)

Max Ribbon Width Collect 4:   508 mm (20”)
Max Ribbon Width Collect 2:   457.2 mm (18”)
Min Ribbon Width:                     203.2 mm (8”)
Max Number of Ribbons:          4

Max Web Speed:                         350 m/ min
Power Supply:                              380 – 400V, AC, 3 phase, 50 Hz

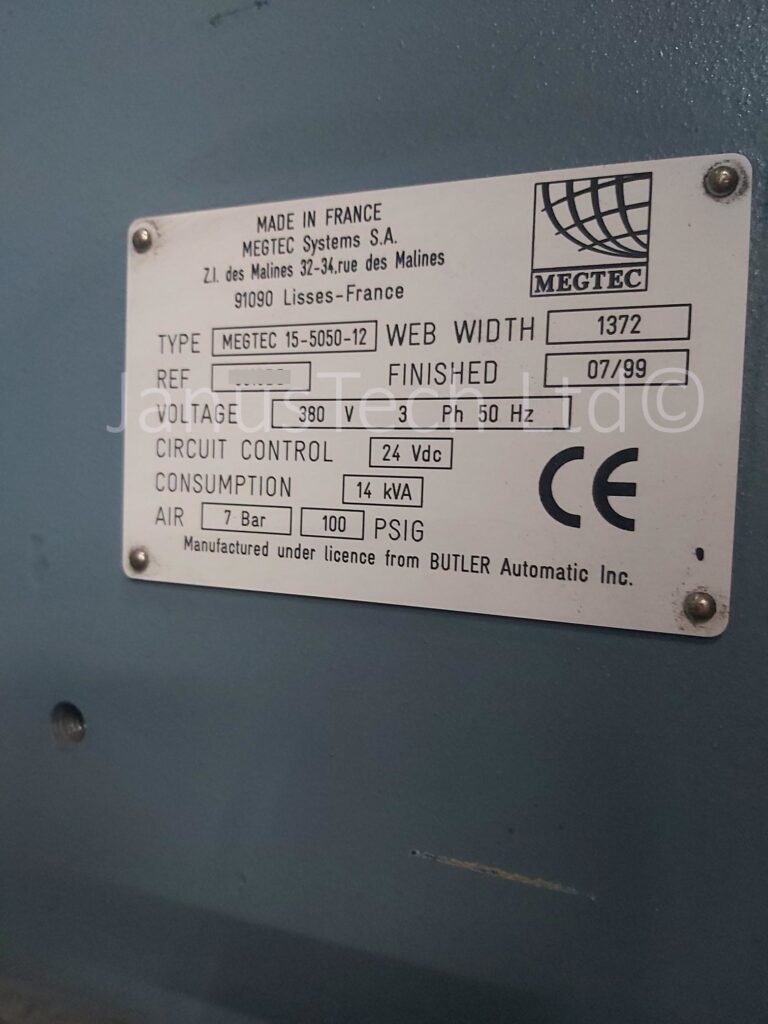

(1)        Megtec 1500 Zero Speed Reelstand

(1)        Timson Infeed

(1)        E& L Web Guide

(1)        Baldwin Web Severer

(2)        Two Colour Timson CM48 Printing Units

• Timson Continuous Dampening
• Inkers with 3 Recips
• 3 Forme Rollers
• Baldwin M160 Web Severer & Clamping

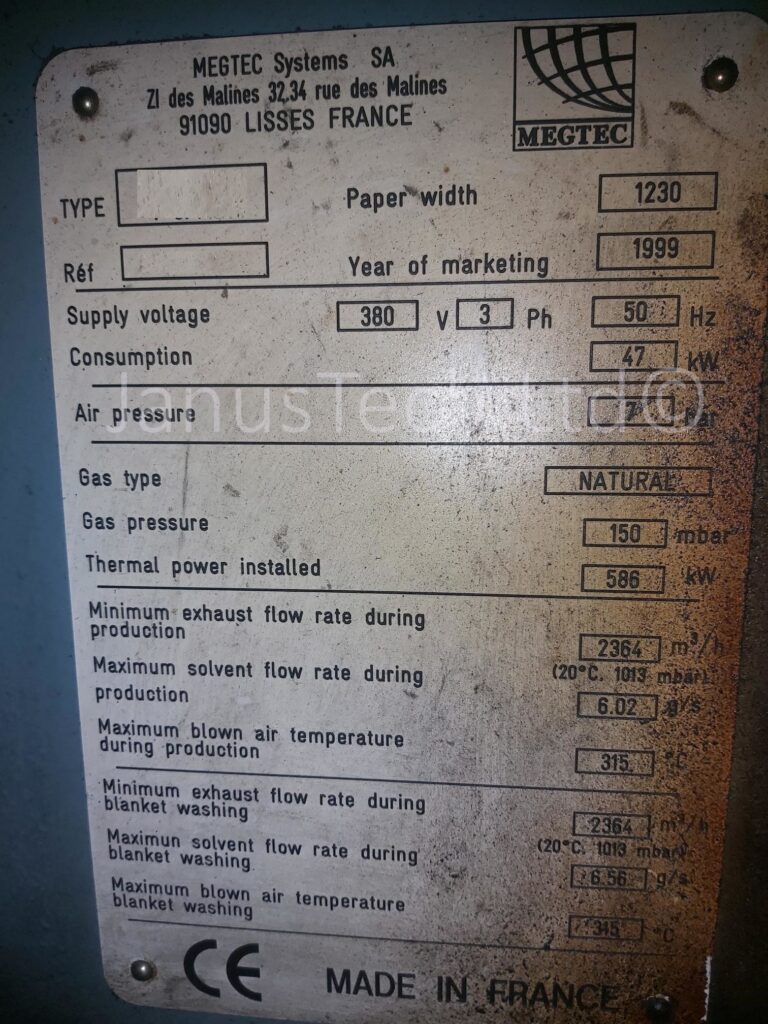

(1) MEGTEC Legacy Heatset Gas Oven

(4) MEGTEC Roll Chill Stand

(1) E & L Web Guide

(1) MEGTEC Remoist Unit

(1) Timson DSD with Eventron Silicone Applicator

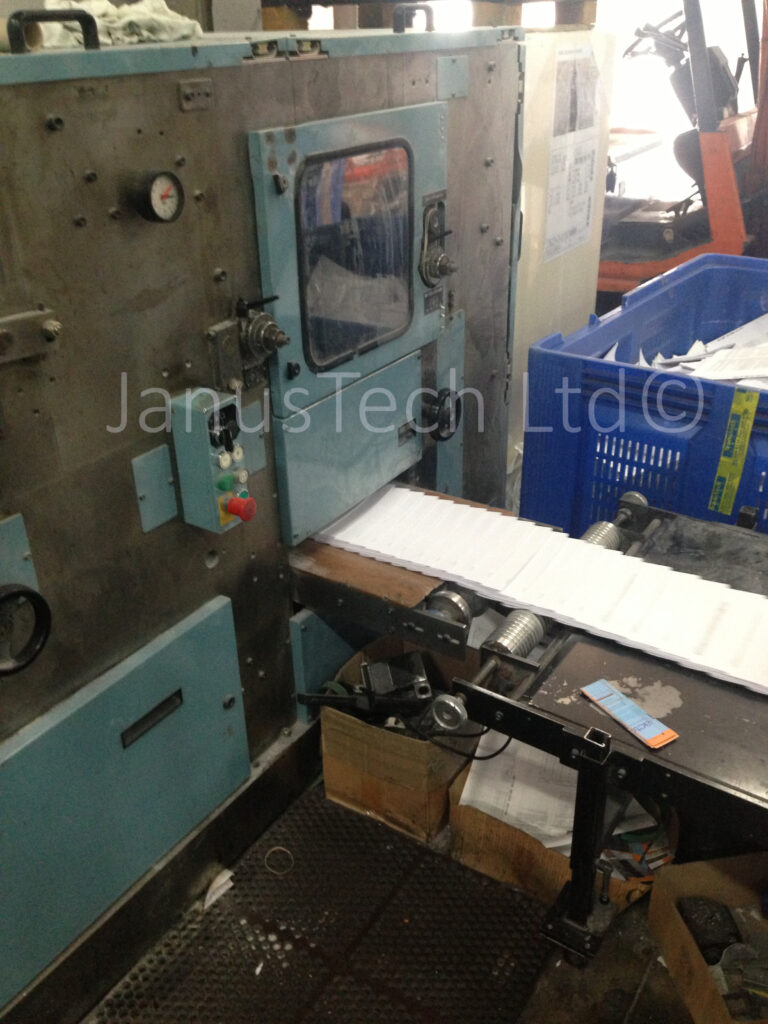

(1) Timson 3 x Sides Open Folder Type M7/4

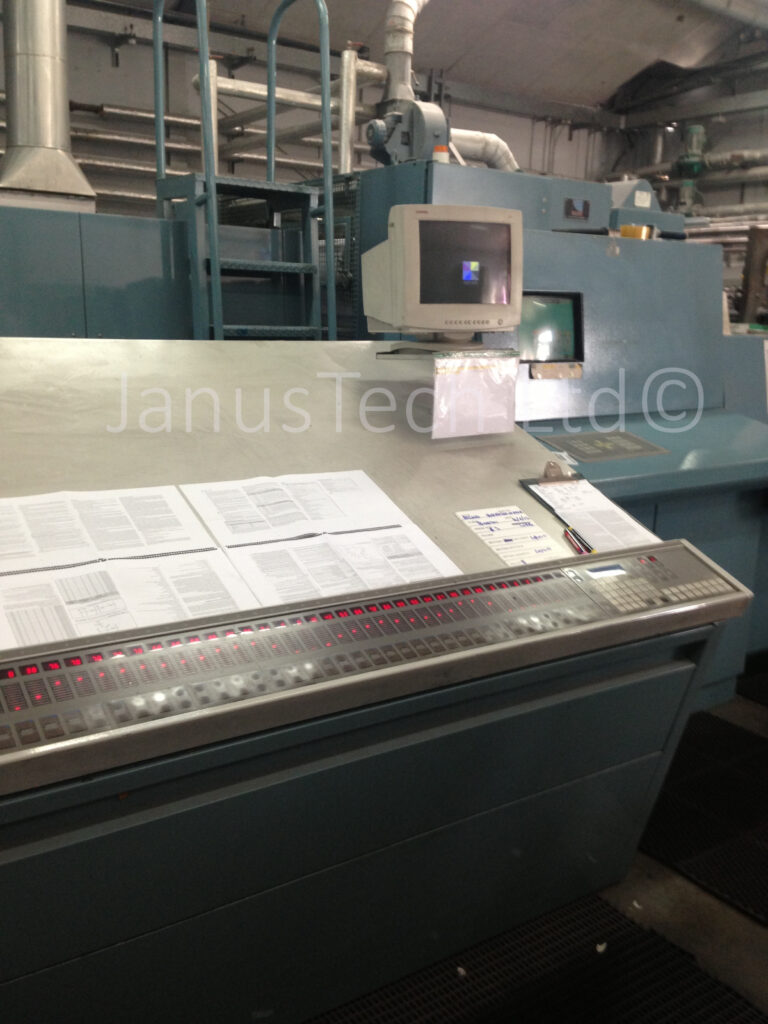

(1)  Microcolour 11 Ink Control

(1) Autotron 1000 Ribbon Register Control

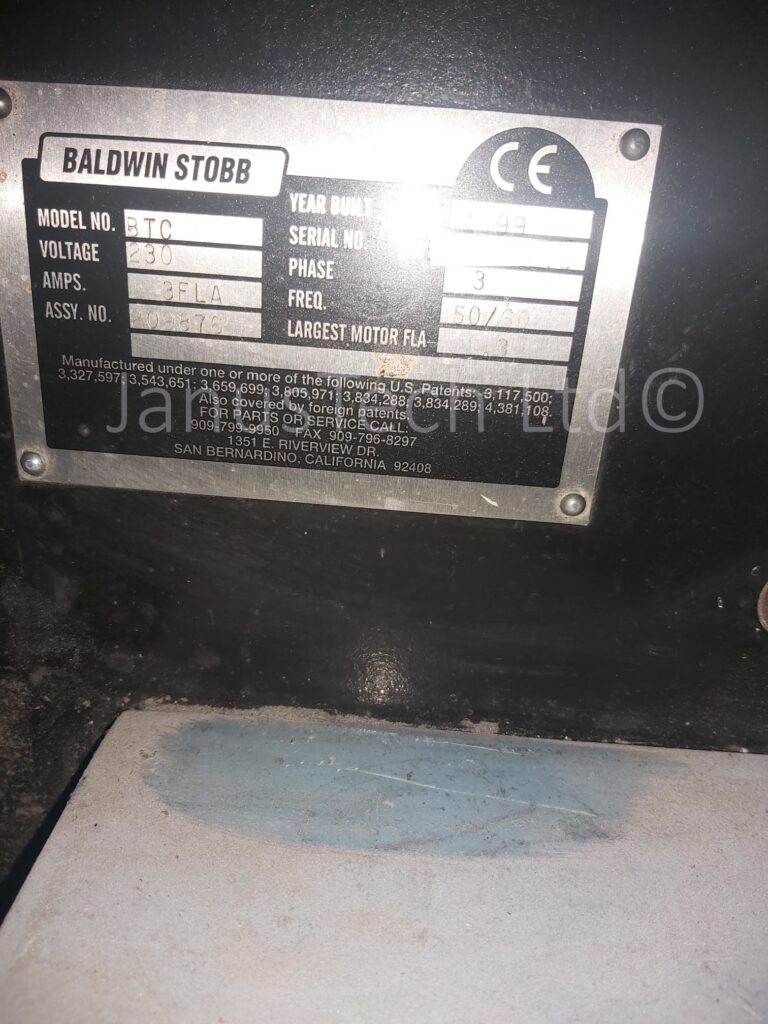

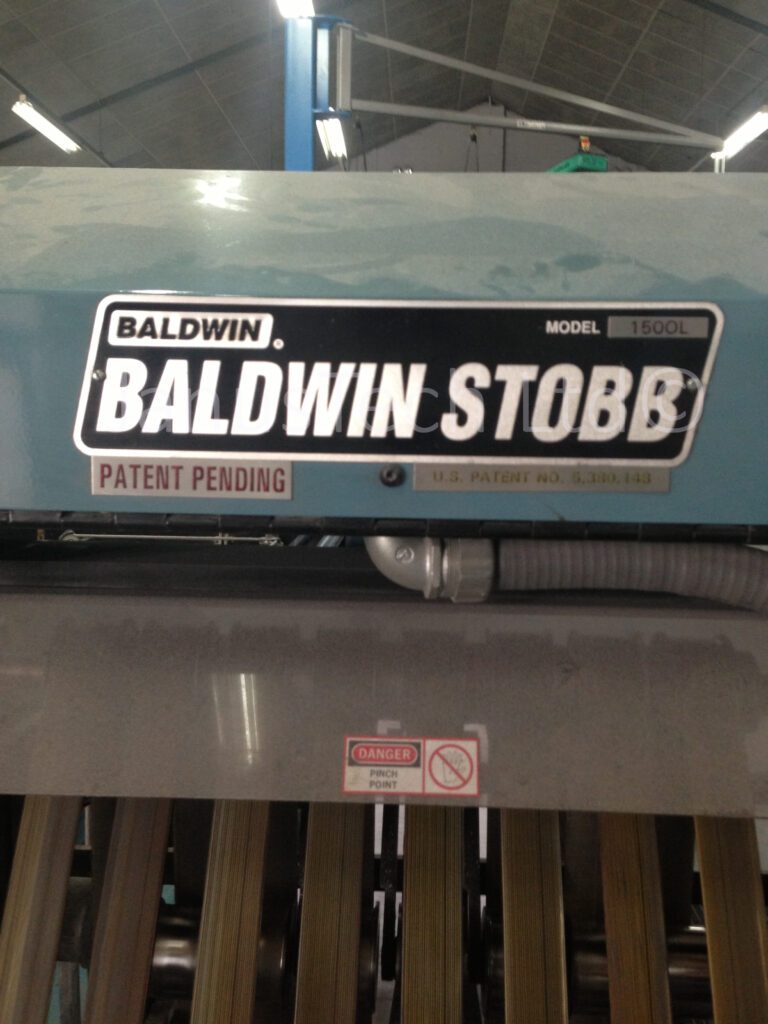

(1) Baldwin Stobb Horizontal Stacker
