Timson T48 ZMR 2-Colour Heatset Web Offset Book Press

Timson T48 ZMR 2-Colour Heatset Web Offset Book Press

Age: c. 2001/ 2010
Cut-off (4 around): 260.35 mm
Cyl Circ: 1041.4 mm (41’’)
Non Print Gap: 9.5 mm
Max Web Width: 1450 mm
Max Print Width: 1435 mm
Plate Thickness: 0.3 mm
Max / Min Ribbon Width: 508 / 216 mm
Max Number of Ribbons: 4
Max/Min Paper gsm: 120 / 28
Max Signature Thickness: 4mm (long grain)/ 3mm (short grain)
Max Web Speed: 457 m/ min
Power Supply: 400V, AC, 3 phase, 4 wire, 50 Hz

Equipment comprising of:

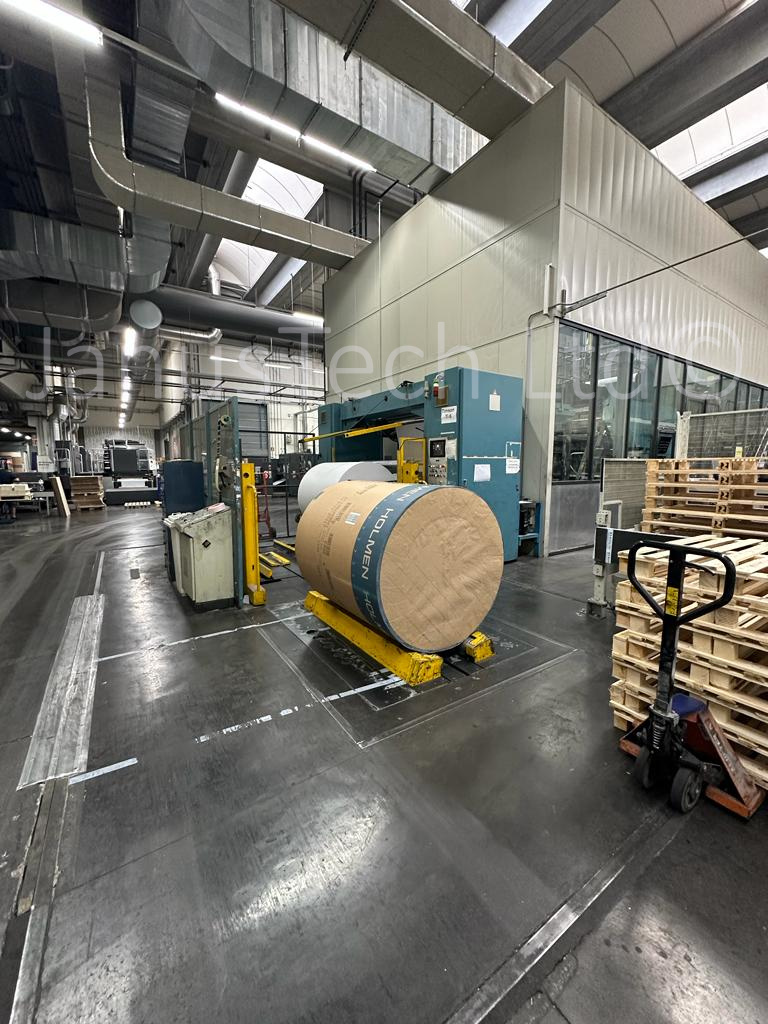

(1) Floor Track Reel Prep & Loading System

(1) MEG DLC 3200 Flying Slicer
• Max Reel Diameter: 1270 mm

(1) Auto Web Up Device

(1) Timson T48 Infeed

(1) E& L Web Guide
(1) Two Colour Timson T48 ZMR Stacked Blanket to Blanket Printing Unit
• Fully rebuilt and Upgraded to Servo Drive by Timson in c. 2010
• Zero Make Ready Facility for Mono Printing
• Timson/Monigraf Continuous Dampening
• Elettra auto ink Roller Wash Up
• 3 Forme Rollers
• Rack Back Inking Units

(1) Technotrans gamma.sd Mixing and Recirculation for Dampening Solution

(1) Elettra Fastwash Blanket Washing c. 2008
• Cloth rewind stand

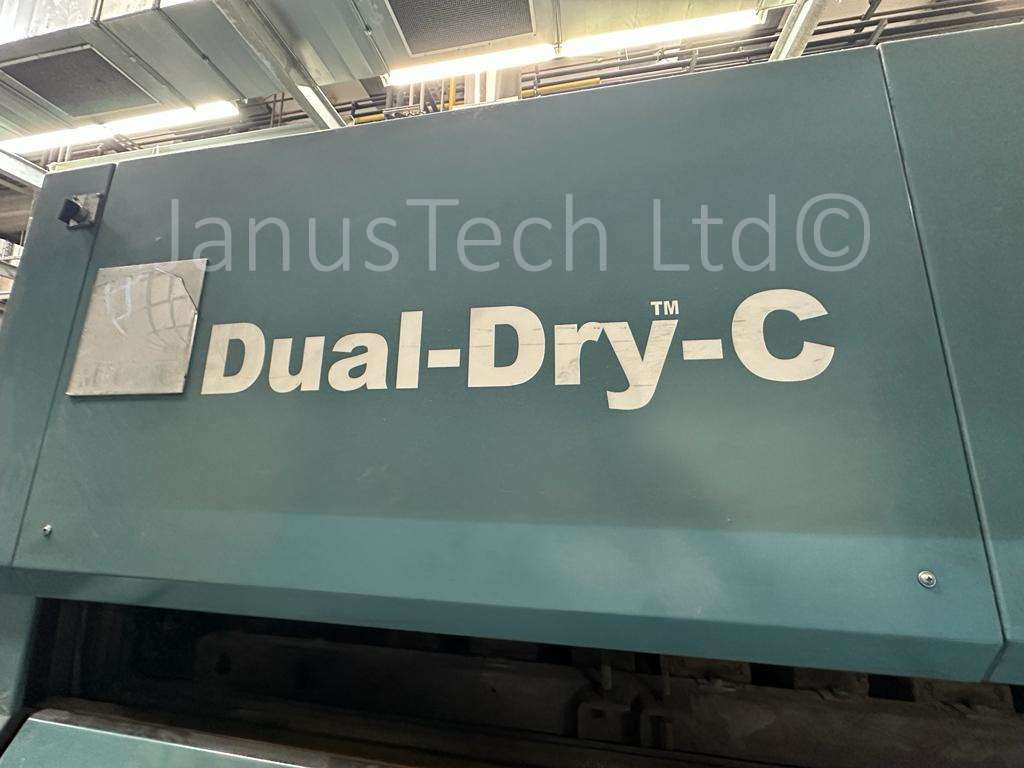

(1) MEGTEC Dual Dry C Hot Air Dryer

(1) 4 Roll Chill Stand

(1) E & L Web Guide

(1) Draw Roll Unit

(1) Shear Slit Unit
• Driven lower anvils

(1) Ribbon Divert Unit
• Air blown motorised angle bars

(1) Ribbon Collation Unit
• Motorised ribbon to ribbon register
• Fold softening per ribbon

(1) Notch/Burst Binding Unit

(1) Timson M7/4X Collect Ribbon Folder
• For production of three sides open long grain and short grain products
• Pre-setting
• Up to 4 ribbons
• 4 Cuts around
• Collect 2 or 4
• Cross fold – single delivery
• ¼ fold – single delivery

(1) Main Control Console

(1) Monigraf MDS – II Colour Console

(1) Grafikontrol Automatic Colour Register Control

(1) Monigraf Offline Colour Density Control

(1) Exit conveyors
• Tabloid Delivery – one exit
• ¼ Fold Delivery – one exit
• Pressing & Jogging station

(1) Civiemme ST420 Log Stacker c.2000
• Auto end board loading
• Auto strapping

(1) Civiemme PL86/100 Palletizer c.2000
• Auto pallet loading
• Auto pallet ejection

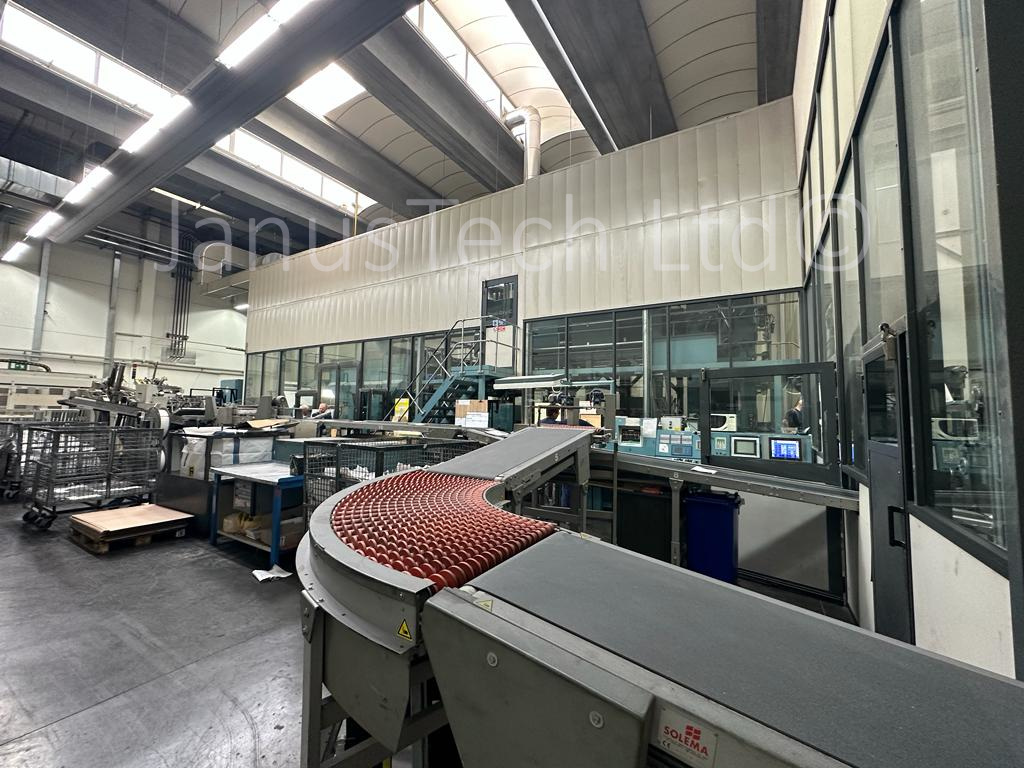

(1) Conveyors

(1) Electrical Control and Drive Cabinets

(1) Plate Bender

(1) Spare Parts and Rollers

(1) Noise Enclosure – 3 Sided

(1) Set of Manuals and Drawings
